Waterproof Car FAKRA Cable Connector Z Jack Lightweight Durable

Product Categories
Shenzhen Leadsign Automotive Electronics Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Waterproof Car FAKRA Cable Connector Z Jack Lightweight Durable

Brand Name : LDS

Model Number : LDS-FAKRA-01ZMW

Certification : E-Mark

Place of Origin : China

MOQ : 20 PCS

Price : Contact the seller

Supply Ability : 200000 PCS/Month

Delivery Time : 7~14 work days

Packaging Details : Carton size 29*13*11CM,20pcs per carton

Impedance : 100Ω

Frequency : DC to 2 GHz

Insulation Resistance : ≥1000 MΩ

Test Voltage : 250 V rms

Working Voltage : 100 V rms

Power current : ≤1.5A DC

Working Temperature : -40℃ ~ +105℃

Waterproof Grade : IP67

Contact Now

High Quality Waterproof Fakra Cable Connector Fakra Z Jack for Car

Description:

Wakerproof Fakra cable connector products are designed for high-speed data transmission to meet automotive data rates up to 6 GHz. The product is waterproof to IP67. The specification coding system of the FAKRA connectors guarantees easy and fast assembly; the locking system with primary and secondary locks guarantees the highest degree of installation and contact security.

Key Feature:
1. Meeting the high demands of the automotive industry in terms of functionality and safety
2. complex mechanical and color coding system with 13 different codes
3. maximum assembly safety
4. efficient automated further processing solutions
5. Rotatable coaxial inserts and cables in plastic housings

6. MOQ:20PCS

Technical Specifications:

Material
Housing PA
Center Pin Copper Alloy
Outer contact Zinc Alloy
Insulator HTN
Electrical Performance
Impedance 100 Ω
Frequency Range DC to 2 GHz
Return Loss

≥20 dB to 1 GHz
≥17 dB to 2 GHz
Insertion Loss ≤0.1 dB to 2 GH
Insulation Resistance ≥ 1000 MΩ
Center Contact Resistance ≤ 8mΩ
Test Voltage 250 V rms
Working Voltage 100 V rms
Contact Current ≤ 1.5 A DC
Mechanical Performance
Mating Cycles ≥ 25 Time
Engagement Force ≤ 30 N
Disengagement Force ≥5 N
Retention Force Latch ≥ 110 N
Temperature Range -40 °C ~ +105 °C
Waterproof Garde IP67

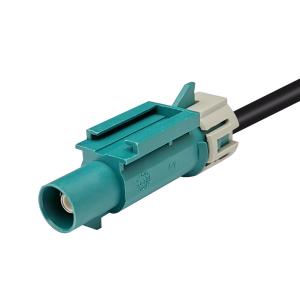

Product image:

Waterproof Car FAKRA Cable Connector Z Jack Lightweight Durable


FAQ:

1.Q:How do I apply for samples?

A:You can contact our customer service, you only need to pay the freight, our samples are free.

2.Q:Does your factory accept customized service?

A:Yes,we accept OEM&ODM.

3.Q:What are your company's strengths?

A:We have a professional technical team to ensure quality as well as efficiency.
